uprate congested corridors without new steel

Congestion and curtailment on lines that are statically rated; slow, evidence-heavy uprating processes.

up to 33%additional capacity from software-only DLR

≈ 56%curtailment reduction in a UK demonstrator

< 90 daysto advisory go-live on your telemetry

01 · TSOs, ISOs, G&T cooperatives, transmission asset owners

Transmission & renewables integration

Congestion and curtailment on lines that are statically rated; slow, evidence-heavy uprating processes.

Modules

Line RatingsRating ForecastSituational AwarenessScenario StudioCompliance

Equipment classes

ACLineSegment (ACSR)PowerTransformerBreakerWeatherStation

Reference twins

Khavda Hybrid RE Park — PS-4 · Gujarat15 MW wind · 5.5 MWdc PV · 10 MW/20 MWh BESS · 45 MW peaker · 400 kV pooling

Use case · Uprate a congested 400 kV corridor without new steel

1Weather cells and line loading stream into the ratings engine; IEEE 738 solves conductor temperature per span every second.
2Ratings publish in real time with ±1σ uncertainty; the 0–240 h forecast feeds day-ahead planning.
3A CAPACITY_UNLOCK recommendation is raised when DLR exceeds static by a configurable margin, with expected MW and USD.
4The operator accepts in Action Center; a second approver signs off; the dispatch limit change is logged in the ledger.
5Realised value is booked from the hours the extra capacity was actually used — visible in Insights & ROI and Compliance.

Reference: up to 33% additional capacity from software-only DLR; ≈ 56% curtailment reduction in a UK demonstrator.

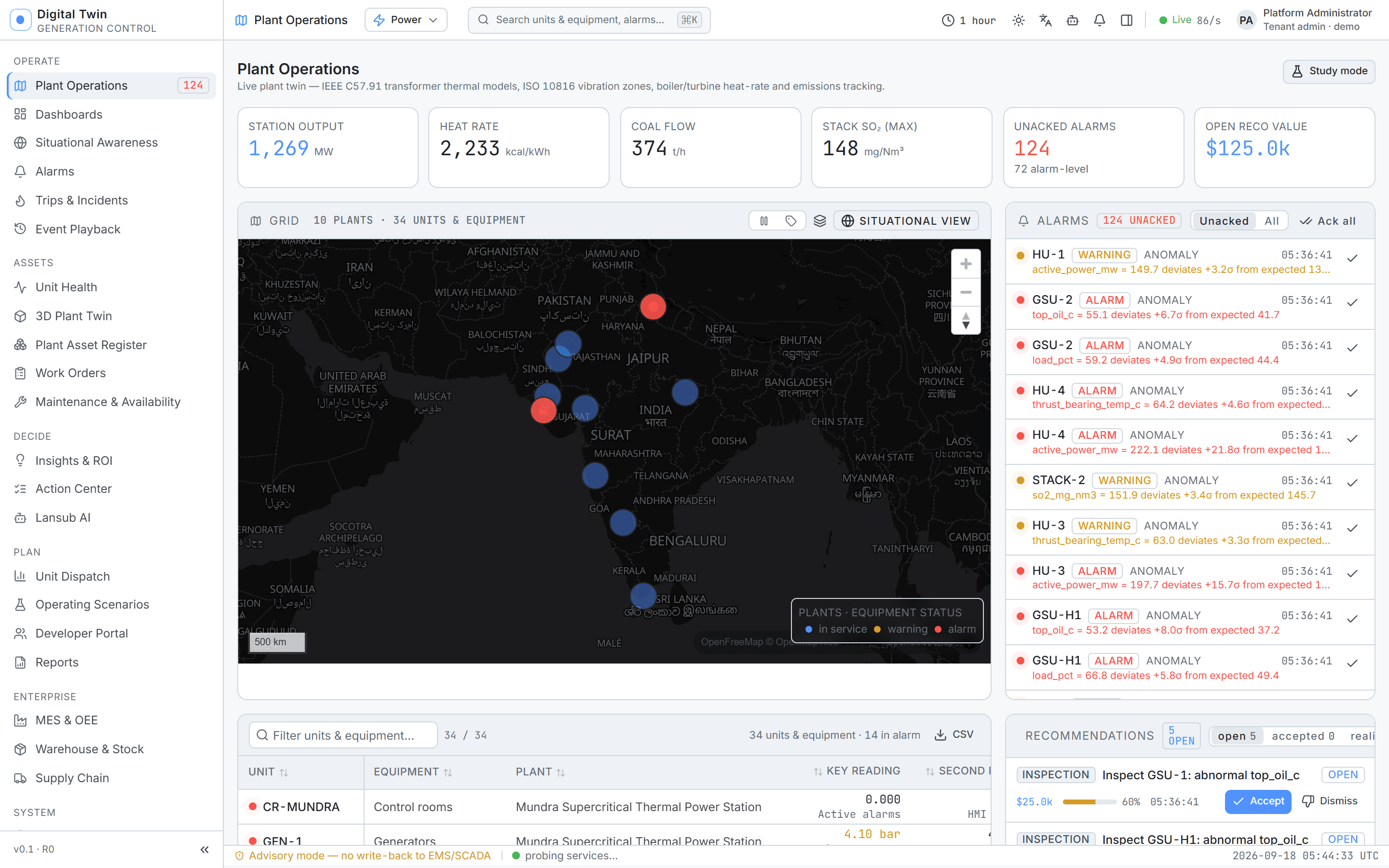

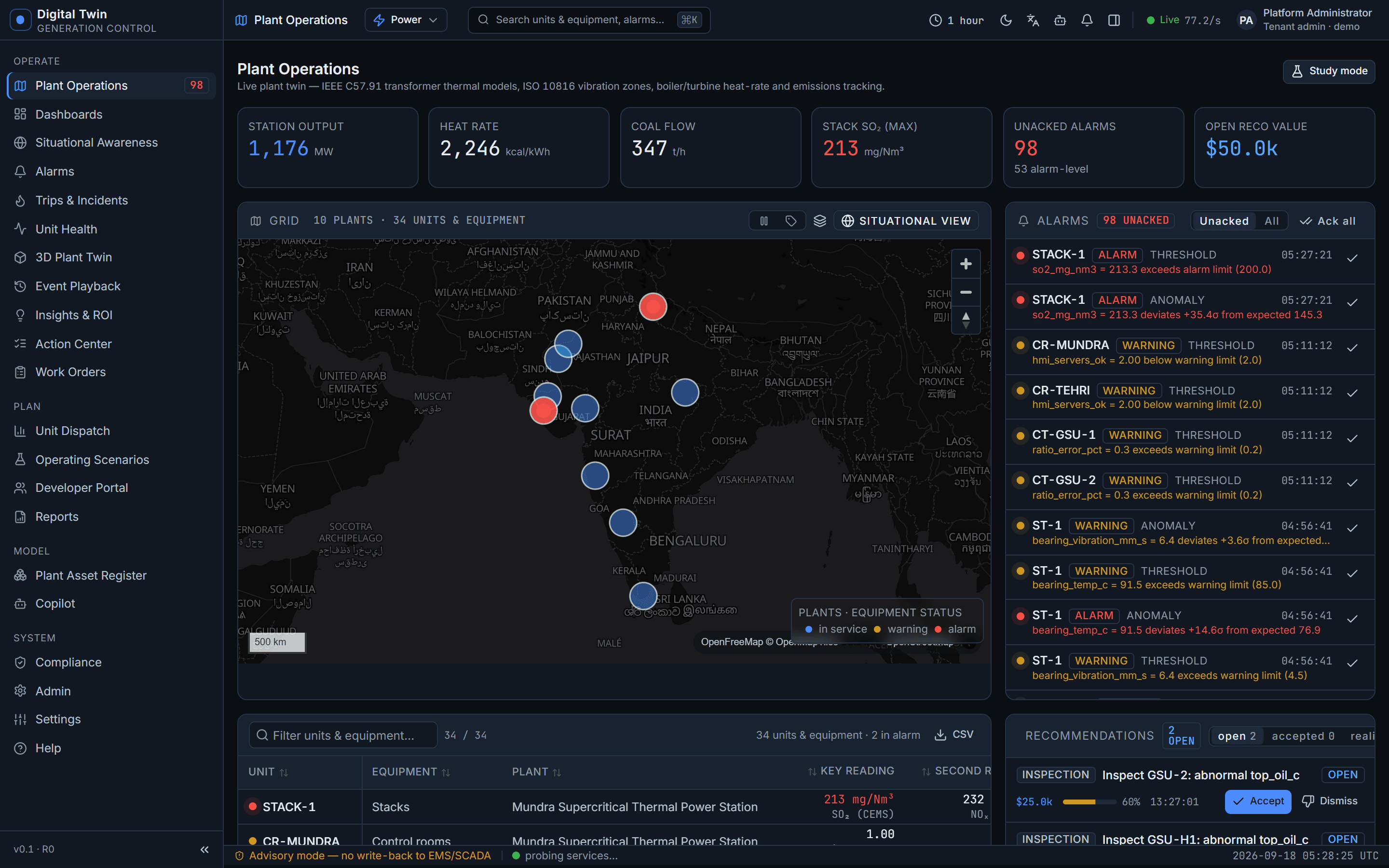

Operations — power & transmission scope — Live capture: Operations scoped to power & transmission — DLR headroom, alarms and open recommendation value on the network map.

Why it pays

up to 33%additional capacity from software-only DLR

≈ 56%curtailment reduction in a UK demonstrator

< 90 daysto advisory go-live on your telemetry

What changes for your team

Defensible ratings: every MW of headroom cites IEEE 738 / CIGRE 601 and its weather inputs
FERC 881-shaped evidence packs exported straight from the ledger
Capacity unlocked is booked as realised USD, not asserted

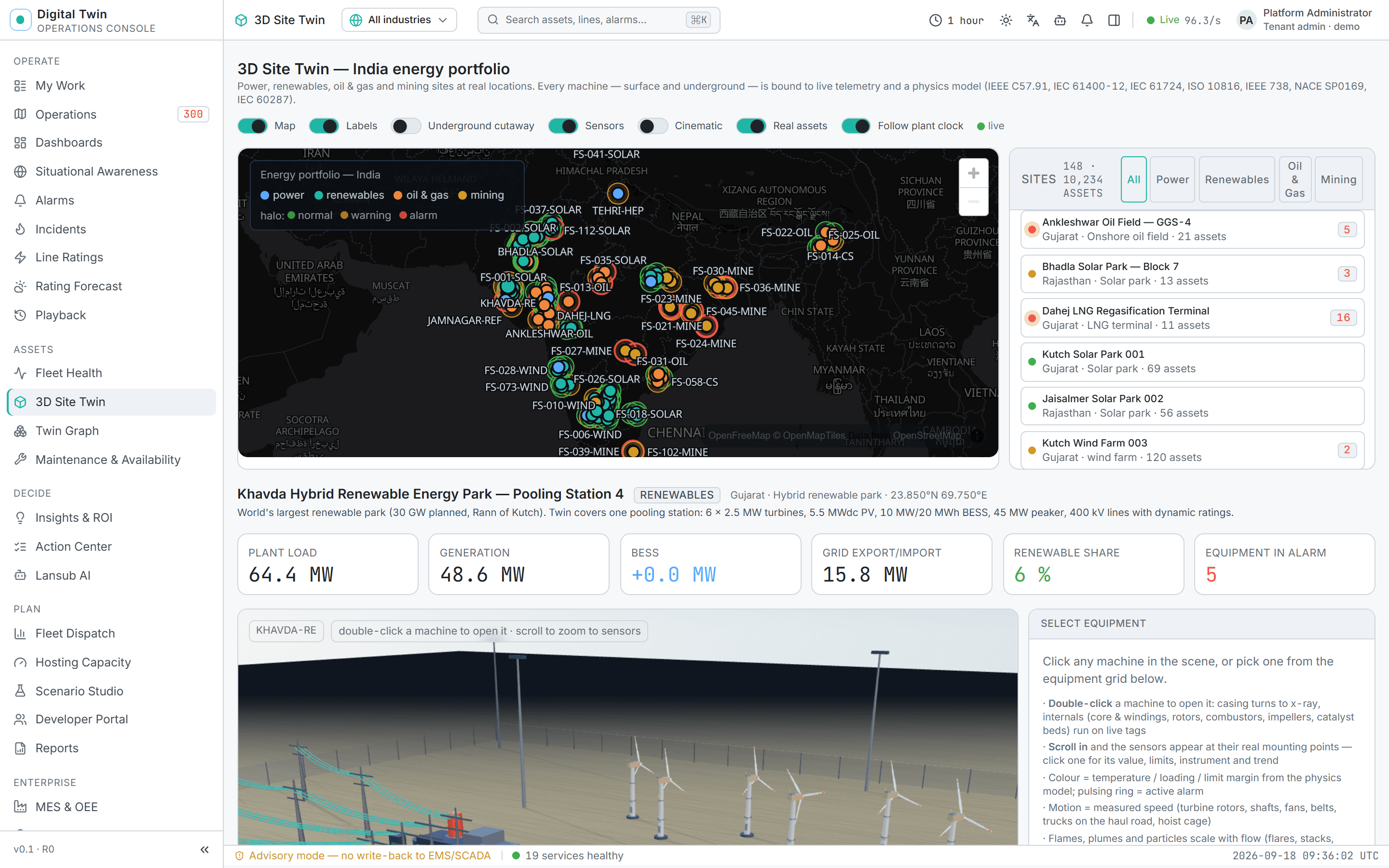

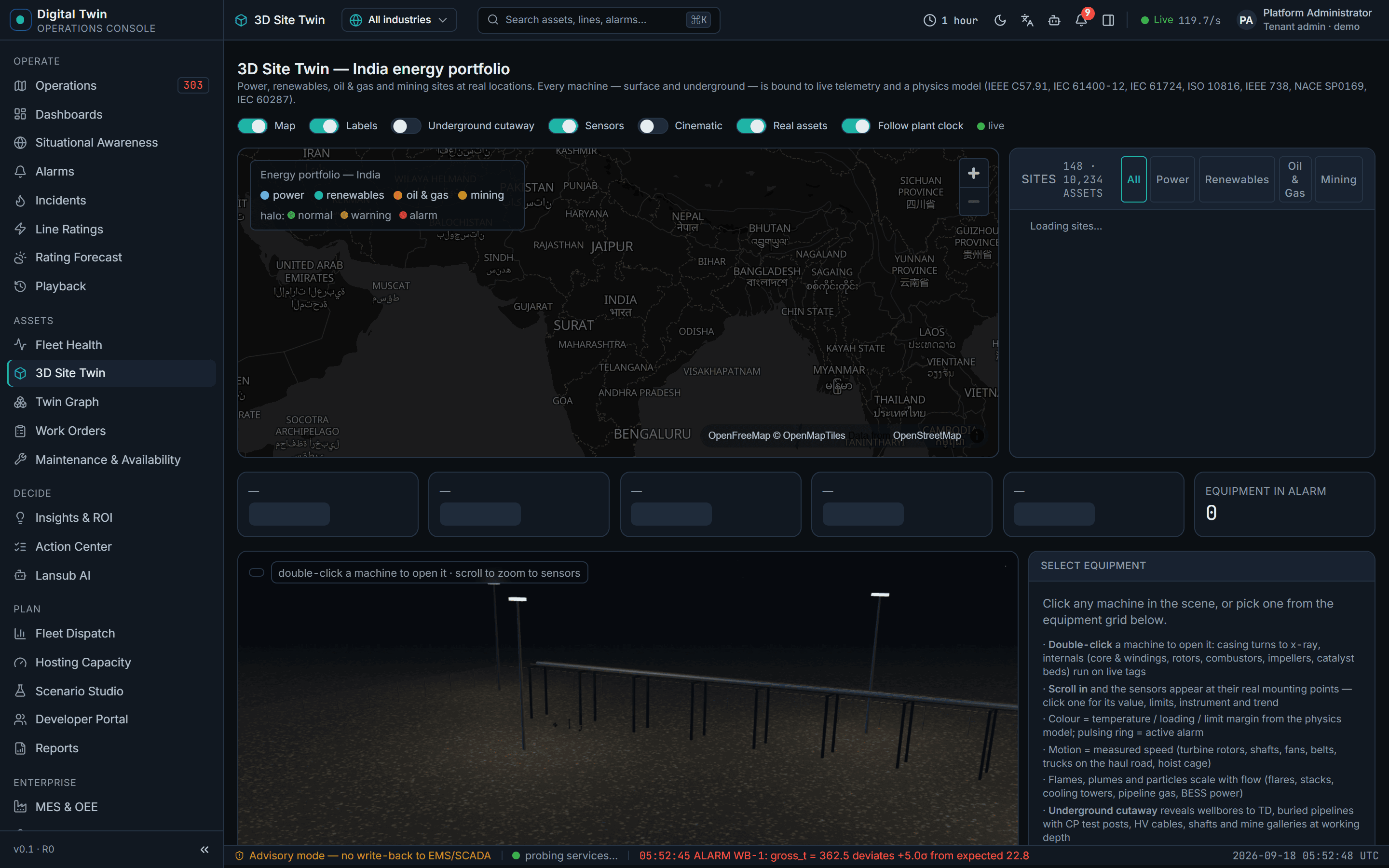

Digital Twin · 3D Site Twin · Khavda Hybrid RE Park — PS-4 — Live capture: 3D site twin of Khavda Hybrid RE Park — PS-4 (15 MW wind · 5.5 MWdc PV · 10 MW/20 MWh BESS · 45 MW peaker · 400 kV pooling) with equipment status and sensor pins.

Case study · reference twin

Reference deployment · Khavda PS-4 400 kV pooling corridor

A hybrid park pools 15 MW wind, 5.5 MWdc PV and a 10 MW BESS through statically rated 400 kV lines. Evening wind ramps hit the static book while the conductors run cold.

IEEE 738 ratings per span from live weather cells; 240 h forecast feeds day-ahead planning
CAPACITY_UNLOCK recommendations raised when DLR clears static by the configured margin
Operator accepts under dual control; the limit change and its value land in the ledger

Runs end-to-end on the Khavda Hybrid RE Park — PS-4 reference twin (Gujarat) — real geography and plant configuration, synthetic telemetry. Reproduce every number in the live demo.

18–33%headroom above static during high-wind evening hours

0–240 hrating forecast with confidence bands for planning

100%of unlock decisions carry evidence exportable in FERC 881 shape

Implementation

Live in 90 days, advisory-first.

Read-only: EMS/SCADA export or historian (PI), line geometry from GIS, weather grid (NWP is built in). No write-back in the pilot.

Weeks 1–3 · Connect

Read-only connectors to your historian and GIS; line spans, conductors and weather cells modelled in the twin graph.

Exit · Telemetry flowing, per-tag quality scores

Weeks 4–8 · Model & baseline

IEEE 738 / CIGRE 601 ratings validated against your static book; 0–240 h forecasts running; alarms tuned with your operators.

Exit · Ratings within agreed tolerance, forecast skill report

Weeks 9–12 · Advisory live

Control-room advisory mode: headroom, capacity-unlock recommendations, FERC 881-shaped evidence exports. ROI ledger starts booking realised value.

Exit · Signed-off advisory go-live + measured uplift report

Value & ROI

Estimate your case — transmission & renewables integration numbers only.

Defaults below are the reference figures for this industry; drag the sliders to your fleet. The full calculator with every industry is on the Value & ROI page.

Capacity unlock (DLR)

Statically rated lines12 Average static rating400 MWAverage DLR uplift18 %Software-only DLR references: up to 33%. Pilots typically validate 10–25%.Congested hours per year900 hOnly hours where extra capacity is dispatchable create value.Congestion relief value12 USD/MWhReplace with your nodal spread or curtailment price.

Avoided outages (transformers & breakers)

Critical monitored assets60 Unplanned events per asset per year0.4 Average outage duration24 hCost per outage hour8,000 USDUndelivered energy, penalties, emergency crews.Reduction from condition-based maintenance25 %Fleet PdM reference: 25% less downtime.

Illustrative annual value

Capacity unlocked: 864 MW; USD 9.33 M / yr
Outage hours avoided: 144 h; USD 1.15 M / yr
Total: USD 10.48 M; per year, before subscription

Capacity value uses the same MW × congested hours × USD/MWh formula insights-service books when a CAPACITY_UNLOCK recommendation is realised. The 90-day pilot replaces every assumption here with measured numbers from your telemetry and recommendations marked realized.

See it running on the reference twins — or on a sanitised slice of your own telemetry. Try the live SCADA & 3D demo

Request a demo

See Digital Twin on your own network data.

A 45-minute working session with our grid engineers on a sanitised slice of your topology and telemetry, followed by a scoped 90-day pilot proposal.

Request a demo Customer sign in
